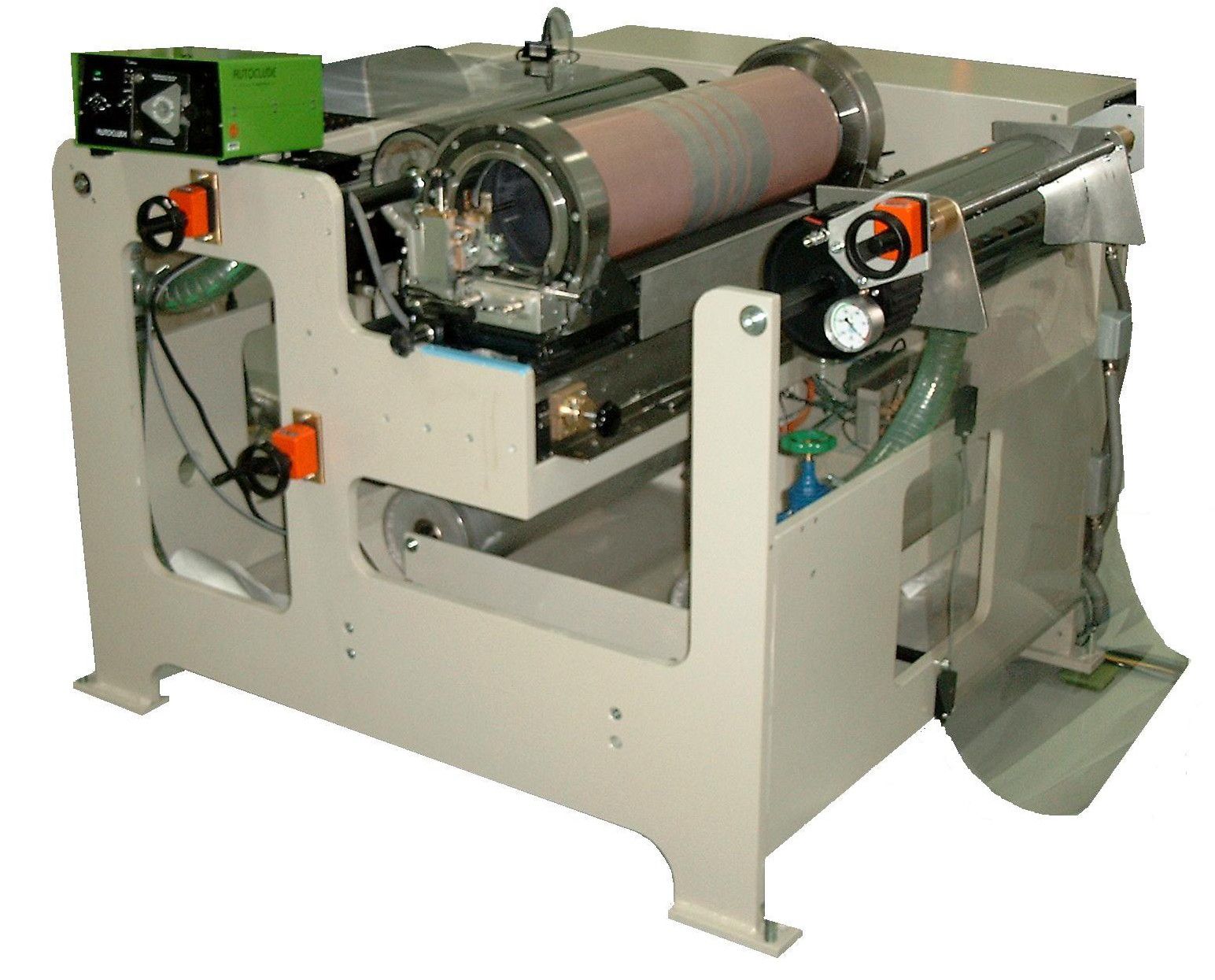

Rotary Screen Printing Head "PMR"
Rotary screen printing Head consisting of:
- Rack with guide rollers for the web transport
- Draw rollers
- Pneumatic web guide system
- Registration system
- Holding device for the rotary screen
- Repeating length 640 mm (other lengths on request)
- Holding device for the squeegee
- Pneumatic pump incl. tube for ink supply (controlled by the machine speed)
- Automatic level-control-system
Technical data:
Max. printing width: mm 330 / 500 / 750
Max. web width: mm 350 / 520 / 770
Speed: max. m/min 60 (depending on materials)
Length: approx. mm 1700
Width: approx. mm 1300 / 1450 / 1700
Height: approx. mm 1300
Power requirement: approx. kW 5
Compressed air: bar 6
Rotary Screen Printing Head
Rotary screen printing line consisting of:
- Frame with guide rollers for rail transport
- Pull roller system
- Automatic web guide system
- Print registration system
- Holding device for the rotary screen
- Repeat length 640 mm (other lengths on request)
- Holding device for the squeegee
- Pneumatic pump including hose for the ink supply (controlled by machine speed)
- Automatic level control system
Technical data:
max. print size: 330 / 500 / 750 mm
speed, max. 60 m/min (depending of material)
length: approx. 1700 mm
width: approx. 1300 / 1450 / 1700 mm
height: approx. 1300 mm
power consumption: 5 kW
compresed air: 6 bar

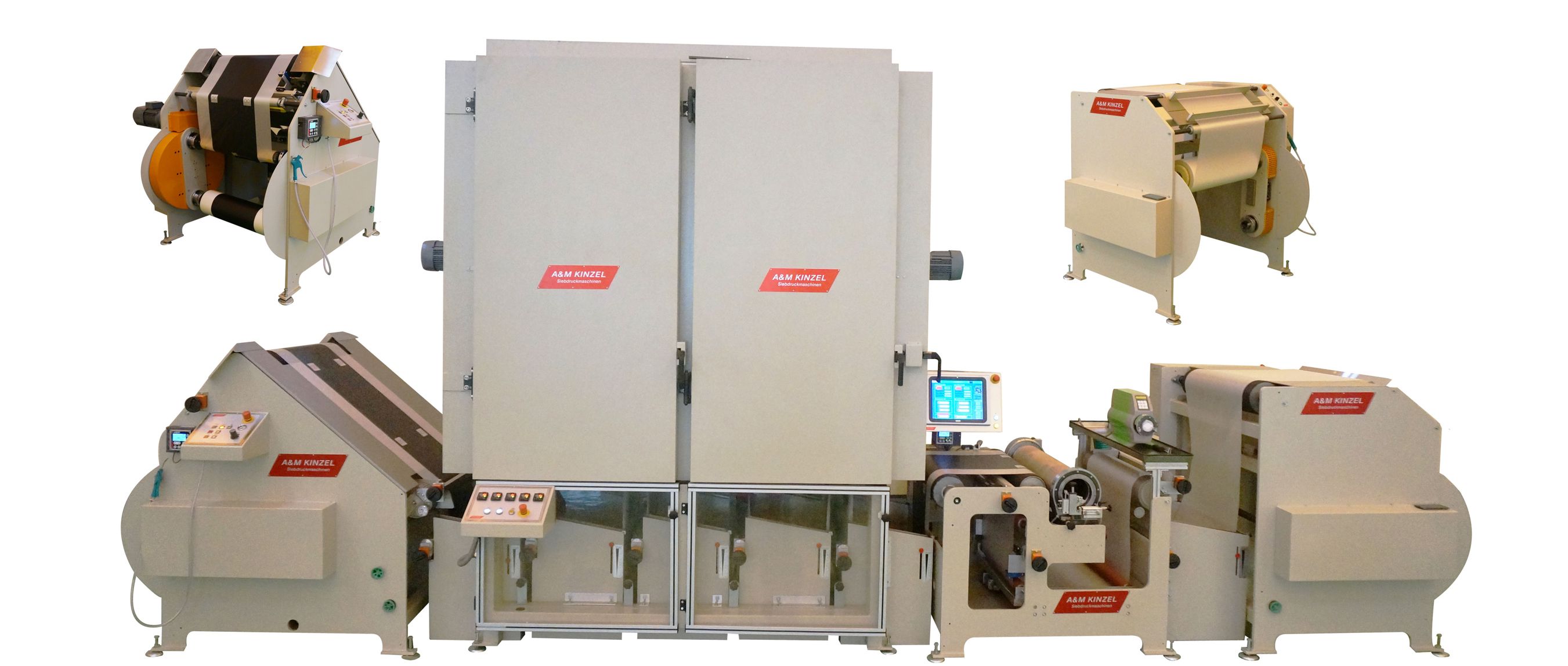

Rotary Screen Printing Line
