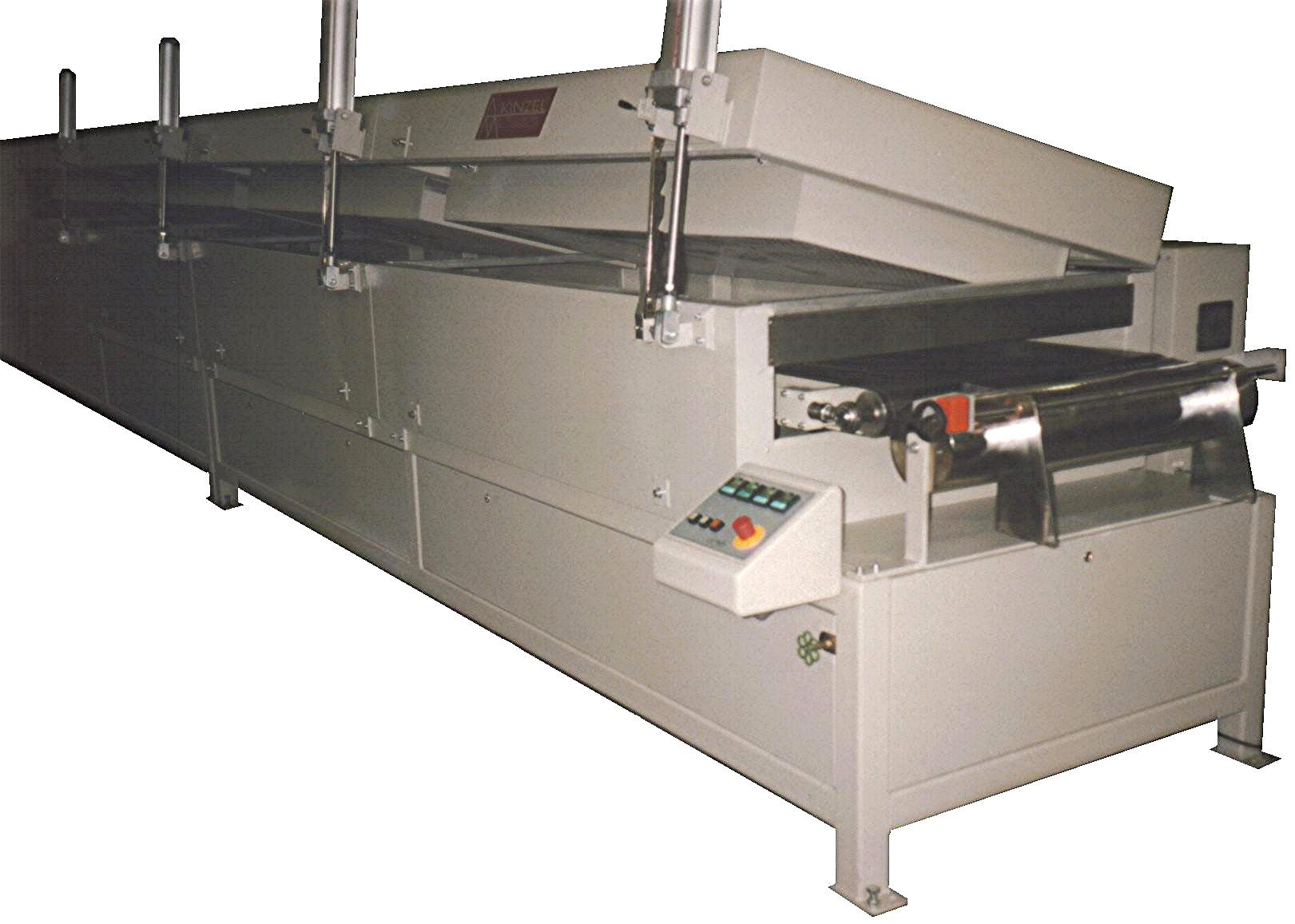

Horizontal (Tunnel) Dryer „DTT"
for roll- and sheet materials

  • Hot-air-dryer with electrical heating (option: gas- or hot-oil)
  • Max. Temperature 120°C, 160°C and higher
  • Temperature control unit with display
  • Different heat sections, separately adjustable
  • Interior dryer in stainless steel
  • Material conveyor belt, PTFE-coated with automatic control guide system
  • Dryer top can be folded up pneumatically
  • Self-regulating loop control unit, with inline operation (roll-to-roll)
  • Insulation of the external surfaces of the dryer
  • Additional IR-heaters in the vacuum-chambers (option)
  • Additional equipment of an UV-dryer (option)

Technical data:

Material throughput width: 350, 500, 770, 1000, 1250 mm
Drying-length: 4, 8, 12, 16, 20, 24 meters
-> longer and special drying lengths on request

Download data sheet
