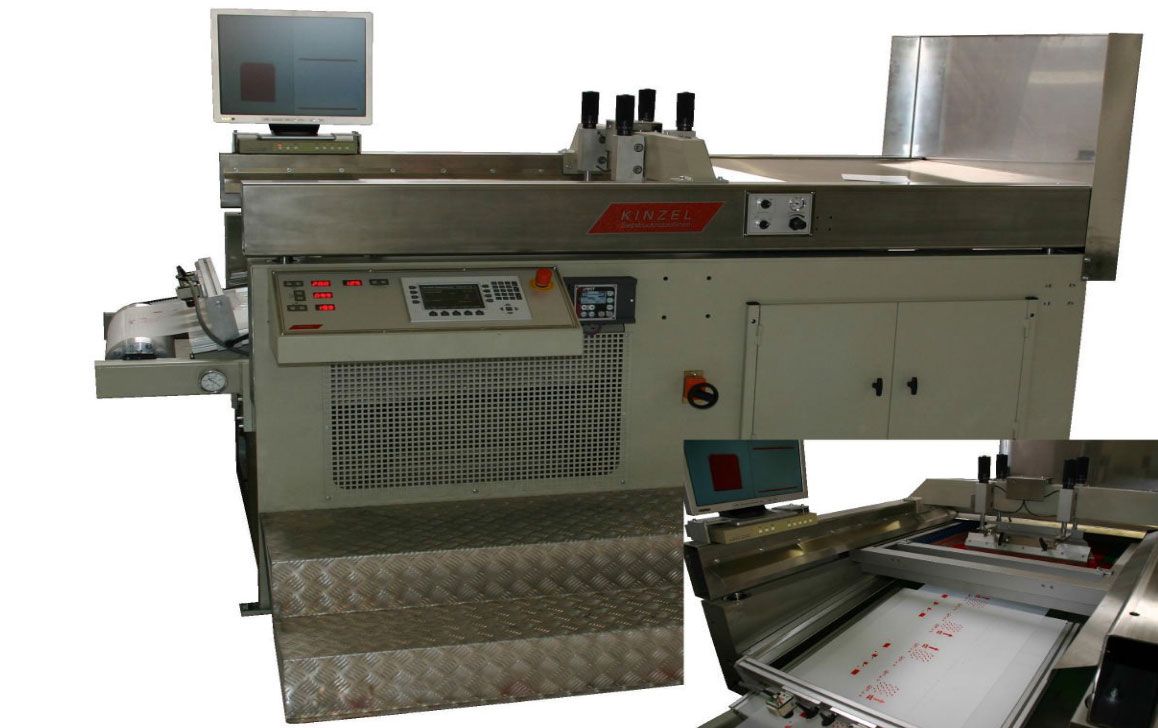

Cylinder Screen Printing Machine „PMC“
- Vacuum infeed device, vacuum adjustable
- Vacuum material transportation unit
- Vacuum-printing-cylinder
- Printing sizes from 330 x 250 to 1500 x 3000 mm (and more) and special sizes
- Compensation of printing length
- Max. printingspeed 1000 m/h (depending on web and inks)
- Pneumatic web guide system
- Printing length and stroke length separately adjustable
- Compensation of printing length
- Height of squeegee and flood bar adjustable
- Electronic adjustment of screen-lift and off-contact
- Pneumatic screen clamp
- 4 column guided screen frame receptacle
- Automatic screen lift into cleaning position by 500 mm
- Pneumatic hole punch device, for registration holes
- Photocell for registration (option: printed-mark-reader)
- Cameras and monitor for control of printed marks (option)
- Electrical screen frame adjusting device, with fine adjustment
- Angle adjustment of squeegee 0-30°
- Loop control unit
- Control-table, illuminated from backside, in the out feed of the machine (option)
- Vacuum infeed box (option), necessary if the web is thinner than 75μ

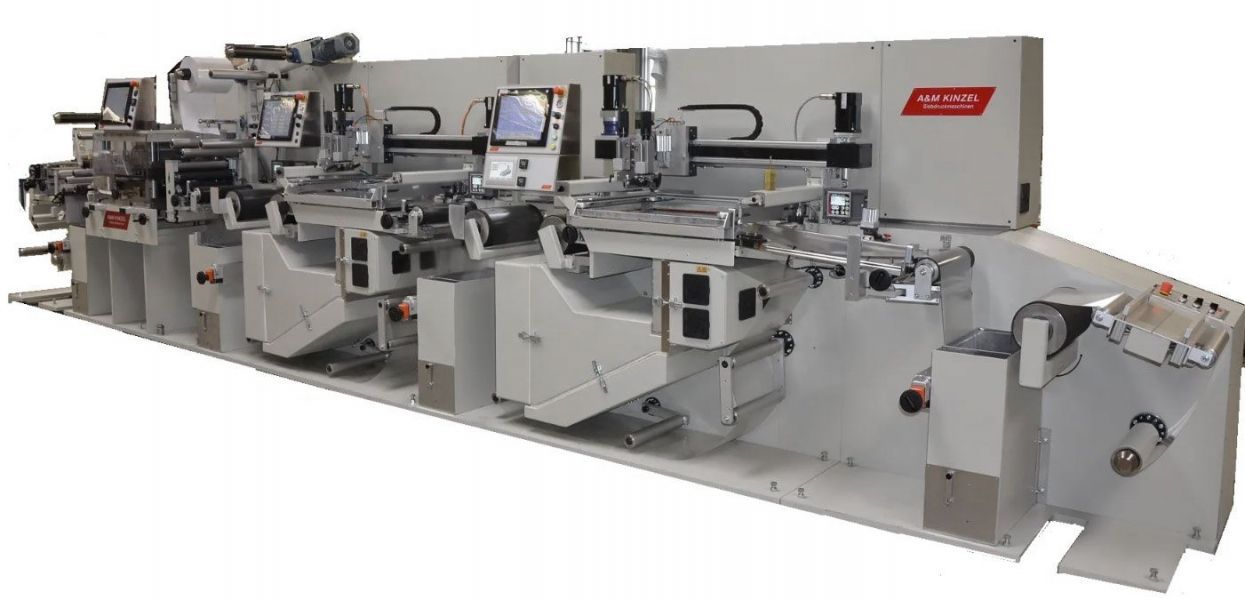

Cylinder Screen Printing Machine „PMC“
- alternatively, as flatbed or cylinder screen printing
- 1-, 2-, 3- and more printing machines, integrated in a very compact design
- easy handling, short design -therefore extremely space-saving
- lower demands on the operators
- web transport with less tension for a perfect web material handling
- Print sizes 250 - 400 mm x up to 500 mm (wxl)
- automatic web guide system
- pneumatic hole-punch-unit for registration holes, in connection with a photosensor or a printed marks reader, the best solution for a realization of highest printing-accuracy
- Dryer selectable with hot air, UV and / or IR
- Flat-Bed-Die Cutter for Steel rule cutting tools
- possibility on integration of a hot-embossing unit laminating unit and more on request
- Waste matrix removal with heating plate
- the rewinder can be equipped alternatively with a slitter and/or a cross cutter unit
- later extension with printing units, dryer, die cutter etc. is possible
